VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim > Class Template Reference

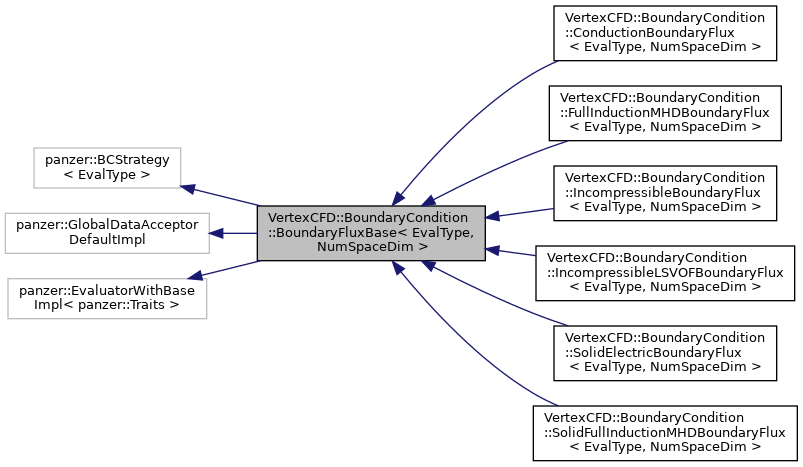

Inheritance diagram for VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim >:

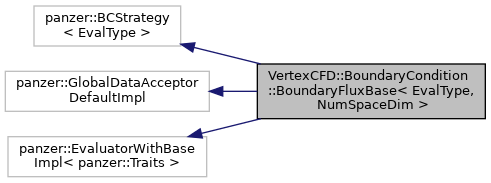

Collaboration diagram for VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim >:

Public Member Functions
	BoundaryFluxBase (const panzer::BC &bc, const Teuchos::RCP< panzer::GlobalData > &global_data)
virtual void	setup (const panzer::PhysicsBlock &side_pb, const Teuchos::ParameterList &user_data)=0
virtual void	buildAndRegisterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const Teuchos::ParameterList &models, const Teuchos::ParameterList &user_data) const =0
virtual void	buildAndRegisterScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const =0
virtual void	buildAndRegisterGatherAndOrientationEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const =0
virtual void	postRegistrationSetup (typename panzer::Traits::SetupData d, PHX::FieldManager< panzer::Traits > &vm)=0
virtual void	evaluateFields (typename panzer::Traits::EvalData d)=0
void	initialize (const panzer::PhysicsBlock &side_pb, std::unordered_map< std::string, std::string > &dof_eq_map)
void	getModelID (const Teuchos::ParameterList &bc_params, const panzer::PhysicsBlock &side_pb, std::string &model_id, Teuchos::ParameterList &side_pb_list) const
auto	getBasisIRLayout (const panzer::PhysicsBlock &side_pb, const std::string &dof_name) const
void	registerDOFsGradient (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const std::string &dof_name) const
void	registerSideNormals (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb) const
void	registerConvectionTypeFluxOperator (std::pair< const std::string, std::string > dof_eq_pair, std::unordered_map< std::string, std::vector< std::string >> &eq_vct_map, const std::string &closure_name, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const double &multiplier) const
void	registerPenaltyAndViscousGradientOperator (std::pair< const std::string, std::string > dof_eq_pair, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const Teuchos::ParameterList &bc_params) const
void	registerViscousTypeFluxOperator (std::pair< const std::string, std::string > dof_eq_pair, std::unordered_map< std::string, std::vector< std::string >> &eq_vct_map, const std::string closure_name, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const double &multiplier) const
void	registerResidual (std::pair< const std::string, std::string > dof_eq_pair, std::unordered_map< std::string, std::vector< std::string >> &eq_vct_map, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb) const
void	registerScatterOperator (std::pair< const std::string, std::string > dof_eq_pair, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::LinearObjFactory< panzer::Traits > &lof) const
auto	integrationRule () const

Static Public Attributes
static constexpr int	num_space_dim = NumSpaceDim

Protected Attributes
std::string	_model_id
Teuchos::ParameterList	_side_pb_list
Teuchos::ParameterList	_bc_params
std::unordered_map< std::string, std::string >	bnd_prefix
std::unordered_map< std::string, Teuchos::RCP< panzer::PureBasis > >	_dof_basis_pair

Member Function Documentation

getBasisIRLayout()

template<class EvalType , int NumSpaceDim>

auto VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim >::getBasisIRLayout	(	const panzer::PhysicsBlock &	side_pb,
		const std::string &	dof_name
	)		const

Parameters

side_pb

side_pb*

initialize()

template<class EvalType , int NumSpaceDim>

void VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim >::initialize	(	const panzer::PhysicsBlock &	side_pb,
		std::unordered_map< std::string, std::string > &	dof_eq_map
	)

Parameters

dof_eq_map

dof_eq_map*

registerScatterOperator()

template<class EvalType , int NumSpaceDim>

void VertexCFD::BoundaryCondition::BoundaryFluxBase< EvalType, NumSpaceDim >::registerScatterOperator	(	std::pair< const std::string, std::string >	dof_eq_pair,
		PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const panzer::LinearObjFactory< panzer::Traits > &	lof
	)		const

Parameters

side_pb

side_pb*

---

The documentation for this class was generated from the following files:

• src/boundary_conditions/VertexCFD_BCStrategy_BoundaryFluxBase.hpp
• src/boundary_conditions/VertexCFD_BCStrategy_BoundaryFluxBase_impl.hpp
