VertexCFD::LinearSolvers::Hypre Class Reference

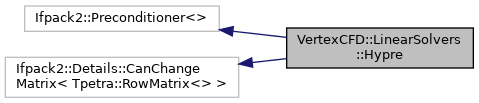

Inheritance diagram for VertexCFD::LinearSolvers::Hypre:

Collaboration diagram for VertexCFD::LinearSolvers::Hypre:

Public Member Functions
	Hypre ()
	Constructor.
	~Hypre ()
	Destructor.
void	initialize () override
	Initialize the preconditioner, does not touch matrix values.
bool	isInitialized () const
void	compute () override
bool	isComputed () const override
void	setParameters (const Teuchos::ParameterList &parameterlist) override
void	setMatrix (const Teuchos::RCP< const Tpetra::RowMatrix<>> &A)
	Set the matrix to be preconditioned. More...
void	apply (const Tpetra::MultiVector<> &x, Tpetra::MultiVector<> &y, Teuchos::ETransp mode=Teuchos::NO_TRANS, double alpha=Teuchos::ScalarTraits< double >::one(), double beta=Teuchos::ScalarTraits< double >::zero()) const override
	Apply the preconditioner to X, returning the result in Y. More...
Teuchos::RCP< const Tpetra::Map<> >	getDomainMap () const override
	The Tpetra::Map representing the domain of this operator.
Teuchos::RCP< const Tpetra::Map<> >	getRangeMap () const override
	The Tpetra::Map representing the range of this operator.
bool	hasTransposeApply () const override
	Whether it's possible to apply the transpose of this operator.
Attribute accessor methods
Teuchos::RCP< const Teuchos::Comm< int > >	getComm () const
	The communicator over which the matrix is distributed.
Teuchos::RCP< const Tpetra::RowMatrix<> >	getMatrix () const override
	The matrix for which this is a preconditioner.
int	getNumInitialize () const override
	The number of calls to initialize().
int	getNumCompute () const override
	The number of calls to compute().
int	getNumApply () const override
	The number of calls to apply().
double	getInitializeTime () const override
	The time (in seconds) spent in initialize().
double	getComputeTime () const override
	The time (in seconds) spent in compute().
double	getApplyTime () const override
	The time (in seconds) spent in apply().

Implementation of Teuchos::Describable
std::string	description () const override
	A simple one-line description of this object.
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override
	Print the object with some verbosity level to a Teuchos::FancyOStream.

Member Function Documentation

apply()

void VertexCFD::LinearSolvers::Hypre::apply ( const Tpetra::MultiVector<> &  x, Tpetra::MultiVector<> &  y, Teuchos::ETransp  mode = Teuchos::NO_TRANS, double  alpha = Teuchos::ScalarTraits<double>::one(), double  beta = Teuchos::ScalarTraits<double>::zero()  ) const

override

Apply the preconditioner to X, returning the result in Y.

Parameters

[in]	X	A (multi)vector to which to apply the preconditioner.
[in,out]	Y	A (multi)vector containing the result of applying the preconditioner to X.
[in]	mode	If Teuchos::NO_TRANS, apply the matrix A. If mode is Teuchos::NO_TRANS, apply its transpose \(A^T\). If Teuchos::CONJ_TRANS, apply its Hermitian transpose \(A^H\).
[in]	alpha	Scaling factor for the result of Chebyshev iteration. The default is 1.
[in]	beta	Scaling factor for Y. The default is 0.

compute()

void VertexCFD::LinearSolvers::Hypre::compute ( )

override

Compute ILU factors L and U using the specified graph, diagonal perturbation thresholds and relaxation parameters.

This function computes the ILU(k) factors.

isComputed()

bool VertexCFD::LinearSolvers::Hypre::isComputed ( ) const

inlineoverride

If factor is completed, this query returns true, otherwise it returns false.

isInitialized()

bool VertexCFD::LinearSolvers::Hypre::isInitialized ( ) const

inline

Returns true if the preconditioner has been successfully initialized.

setMatrix()

void VertexCFD::LinearSolvers::Hypre::setMatrix

(

const Teuchos::RCP< const Tpetra::RowMatrix<>> &

A

)

Set the matrix to be preconditioned.

Parameters

[in]

A

The new matrix.

Postcondition

! isInitialized ()

! isComputed ()

Calling this method resets the preconditioner's state. After calling this method with a nonnull input, you must first call initialize() and compute() (in that order) before you may call apply().

You may call this method with a null input. If A is null, then you may not call initialize() or compute() until you first call this method again with a nonnull input. This method invalidates any previous factorization whether or not A is null, so calling setMatrix() with a null input is one way to clear the preconditioner's state (and free any memory that it may be using).

The new matrix A need not necessarily have the same Maps or even the same communicator as the original matrix.

setParameters()

void VertexCFD::LinearSolvers::Hypre::setParameters ( const Teuchos::ParameterList &  parameterlist )

override

Set parameters using a Teuchos::ParameterList object. The parameter list should contain the path the the HypreDrive yaml file.

---

The documentation for this class was generated from the following files:

• src/linear_solvers/VertexCFD_LinearSolvers_Hypre.hpp
• src/linear_solvers/VertexCFD_LinearSolvers_Hypre.cpp
